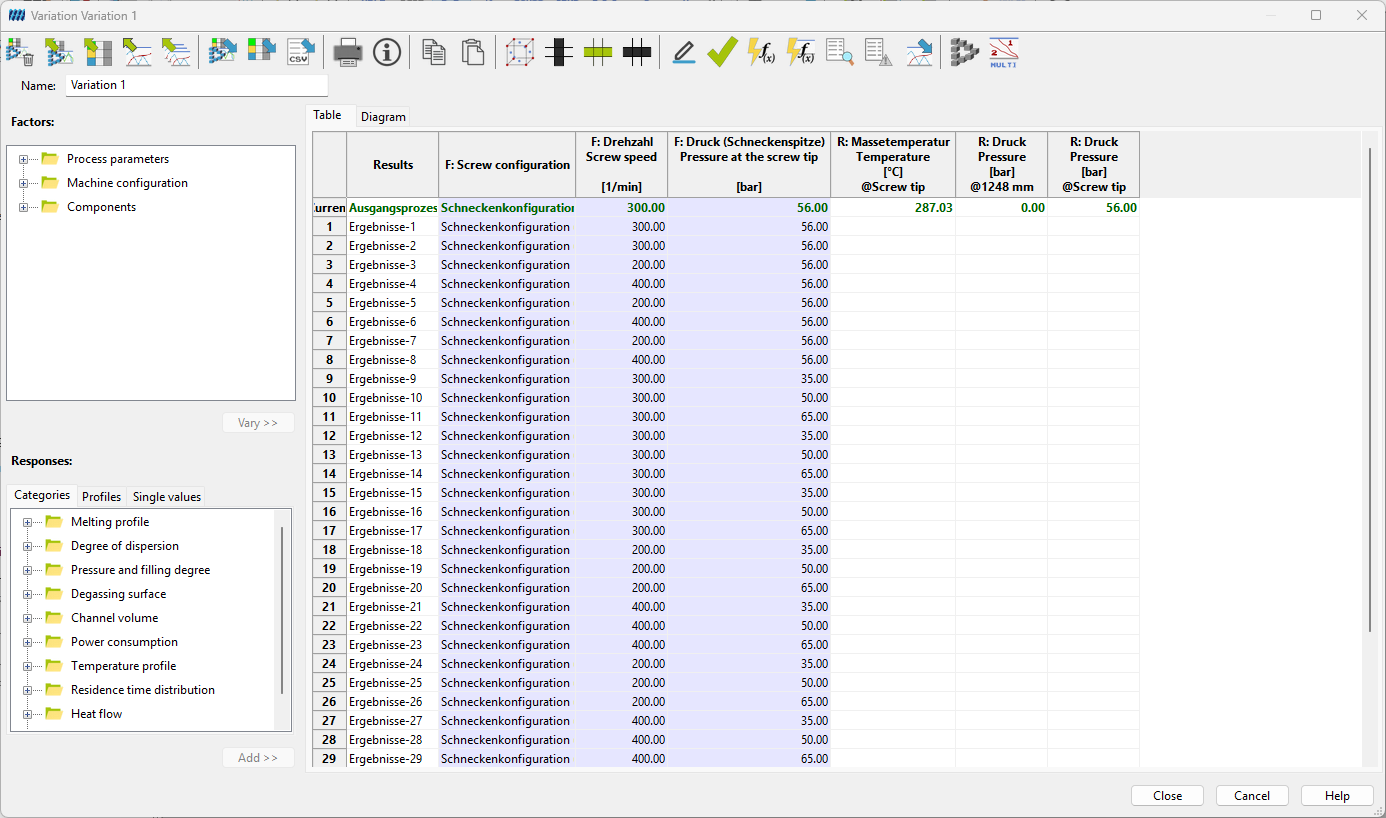

The main menu of the variation module can be divided into three areas:

1. dialog window to choose factors and responses
2. experimental design
3. button bar to choose actions

Before a factor or a response can be configured it has to be chosen via the file explorer// Factor or Response//.

Each of the factors is listed in one of the categories process parameters, machine configuration and components.

The responses can be chosen from two tabs. In the tab Ordered by… all standard responses are listed according to categories. In the tab All also responses defined by the user or seldomly used ones are listed alphabetically.

Open a file
Path: Double-click on the name of the file

Open the configuration dialog of a factor / response
Path: Double-click on the factor / response

or

Path: Click on the factor / response > Click on the button Vary or Add

Each row of the experimental design depicts one created experiment. The first row shows the values of the basic process. In the single columns the chosen factors and responses are shown.

responses already integrated into the experimental design can be configured with a double-click on the corresponding column name.

Deleting a column or a factor or response from the experimental design

Path: Click in an arbitrary field of the column > Click on the button Delete column

Dublicating an already existing experiment or a row in the experimental design

Path: Click in an arbitrary field of the experiment / the row > Click on the button Dublicate experiment

Deleting an experiment or a row in the experimental design

Path: Click in an arbitrary field in the experiment / the row > Click on the button Delete experiment

The experimental design is checked for dublicates or not calculated experiments. If these exist, they can be deleted afterwards by the system. Thus this check can crucially shorten, the calculation time.

The calculation of the experiments is started.

From each experiment shown in the experimental design an independent process can be created. For this purpose, the single process components are saved in separate files.

An experiment is chosen by clicking in the corresponding row of the experimental design. The dialog to save the single process components is opened by clicking on the button Create process for the selected experiment.
